Ultimate Guide to Prepare JN0-650 Certification Exam for JNCIS-ENT in 2026 [Q56-Q75]

QUESTION 56

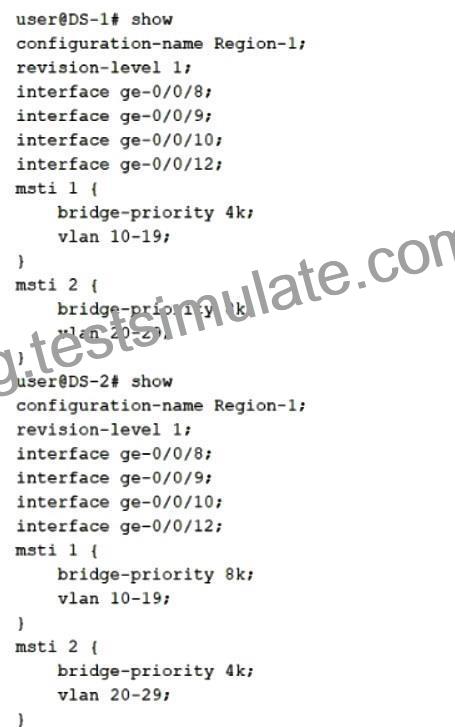

Click the Exhibit button.

Referring to the exhibit, which two statements are correct? (Choose two.)

DS-1 will be the root bridge for MSTI 2.

RSTP will be used to generate the CST.

MSTP will not converge.

DS-1 will be the root bridge for MSTI 1.

QUESTION 57
How does Junos handle BGP route advertisements from a neighbor that include the local AS in the AS_PATH?

It accepts the route and adds the local AS to the AS_PATH.

It rejects the route by default.

It replaces the received AS_PATH with the local AS.

It lowers the preference of the route.

QUESTION 58
Your router is discarding an EBGP route because the next hop is not directly connected. Which BGP configuration would you use to override this behavior?

accept-remote-nexthop

multihop

advertise-inactive

multipath

QUESTION 59
In OSPF, which LSA types are commonly included in a router’s link-state database in a standard (non-NSSA) area? (Choose two)

Type 1

Type 5

Type 7

Type 9

QUESTION 60

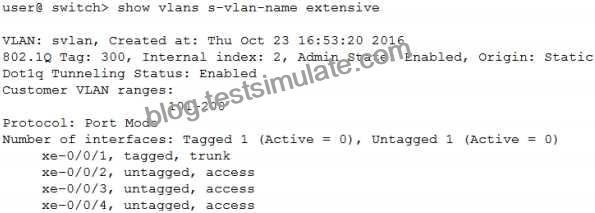

Exhibit:

During an outage, you review the status of the Q-in-Q implementation on VLAN 300. Referring to the exhibit, what would be the cause of the outage?

The S-VLAN is disabled

The VLAN range overlaps

The C-VLANs are disabled.

There are no active ports

QUESTION 61
Which three statements are true about strict-high priority queues? (Choose three.)

In systems that support strict-high and high priority queues, traffic in the strict-high queue is completely emptied, and then high priority queue traffic is processed.

In systems that support strict-high and high priority queues, traffic in these two priorities is processed in a round-robin fashion.

When a strict-high queue goes into negative credits, it will maintain a strict DSCP marking.

When a strict-high queue can never go into negative credits and will always transmit the traffic in the queue.

In systems that support multiple strict-high priority queues, traffic in the strict-high queue is processed in a round-robin fashion.

QUESTION 62

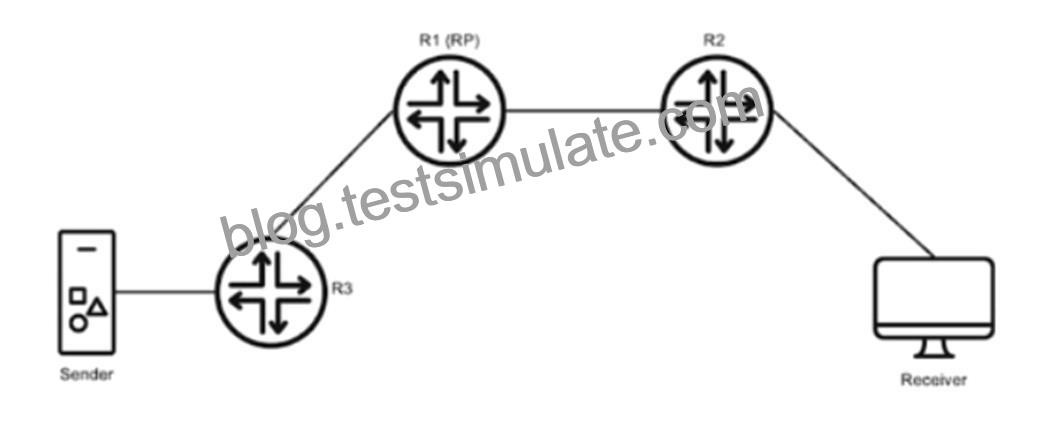

Click the Exhibit button.

You are configuring multicast routing in a Juniper enterprise network using PIM sparse mode (PIM SM). The network includes multiple routers and R1 is designated as the rendezvous point (RP). You want to ensure that multicast traffic from the sources reach receivers across the network.
Referring to the exhibit, which two configuration elements are required on R2 to ensure proper multicast forwarding? (Choose two.)

Configure MSDP between R2 and the RP.

Enable PIM on interfaces participating in multicast routing.

Enable IGMP on interfaces connected to multicast receivers.

Configure static multicast routes using set routing-options static route for each multicast group.

QUESTION 63

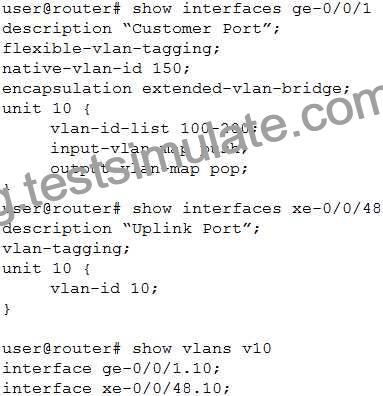

Exhibit:

Referring to the exhibit, which two statements are true regarding Q-in-Q tunneling? (Choose two.)

The C-VLAN traffic will be encapsulated with an outer VLAN tag of 150.

The C-VLANs 100-200 will be sent as the inner VLAN tag.

The C-VLAN 150 will be sent as the inner VLAN tag.

The C-VLAN traffic will be encapsulated with an outer VLAN tag of 10.

QUESTION 64
Which two statements are correct when using the no-loss forwarding class? (Choose two.)

Use the default scheduler map.

Use forwarding class sets.

Use priority-based now control.

Use the default drop profile.

QUESTION 65
You are evaluating a BGP routing policy that has a route-filter clause that includes its own action (e.g., accept) within the filter block. The policy is also using a then clause. Which statement is correct in this scenario?

The policy ignores the filter action and defers to the then clause.

The filter action is treated as a suggestion and combined with the then action.

The filter action is applied only if no then action is defined.

The filter’s accept action executes immediately upon matching and the then clause is ignored.

QUESTION 66
In the context of Junos, what is the purpose of the ‘multicast’ routing-options configuration hierarchy?

To enable multicast routing protocols such as PIM or MSDP

To specify static multicast routes

To configure multicast rate limiting

To define multicast boundary filters

QUESTION 67
Which two statements correctly describe how EX Series switches use captive portal for Layer 2 authentication? (Choose two.)

The captive portal is the default Layer 2 authentication method that is applied before other methods such as 802.1X or MAC RADIUS.

The captive portal authentication allowlist works for devices that do not have HTTP capabilities.

The captive portal is configured on Layer 3 interfaces and does not participate in Layer 2 authentication on EX Series switches.

The captive portal is used as a fallback mechanism for clients that fail 802.1X or MAC RADIUS authentication.

QUESTION 68
You have configured a multi-area OSPF network. You want to limit the effect that network changes in other areas affect Area 1.
What can be done to accomplish this task?

Configure overload on the area 1 ABR.

Use the [area-range] statement at the area 1 ABR to summarize routes that go to other areas.

Increase the value of the [protocols ospf spf-options delay].

Configure Area 1 as a stub area with no summaries.

QUESTION 69
Which two telephony features are available on EX Series switches? (Choose two.)

voicemail forwarding and retrieval

power over Ethernet

call routing

class of service

QUESTION 70
Exhibit:
Mar 16 17:48:06.145257 OSPF periodic xmit from 172.14.10.1 to 224.0.0.5 (IFL 69 area 0.0.0.1) Mar 16 17:48:12.404986 ospf_trigger_build_telinkisas : No peer found Mar 16 17:48:13.013420 ospf_trigger_build_telinkisas : No peer found Mar 16 17:48:13.013555 ospf_setisdb_statE. Router LSA 192.168.2.1 adv-rtr 192.168.2.1 state QUIET->GEN_PENDING Mar 16 17:48:13.013661 OSPF trigger router LSA Ox156dIXO build for area 0.0.0.1 Isa-id 192.168.2.1 Mar 16 17:48:13.017494 ospf_setisdb_statE. Router LSA 192.168.2.1 adv-rtr 192.168.2.1 state GEN_PENDING->QUIET Mar 16 17:48:13.017636 OSPF built router LSA, area 0.0.0.1, link count 2 Mar 16 17:48:13.017954 OSPF sent Hello 172.14.10.1 – 224.0.0.5 (ge-0/0/1.0 IFL 69 area 0.0.0.1) Mar 16 17:48:13.018023 Version 2, length 44, ID 192.168.2.1, area 0.0.0.1 Mar 16 17:48:13.018111 mask 255.255.255.0, hello_ivl 10, opts 0x2, prio 128 Mar 16 17:48:13.018162 dead ivl 40, DR 172.14.10.1, BDR 0.0.0.0 Mar 16 17:48:13.018613 OSPF DRis 192.168.2.1, BDR is 0.0.0.0 Mar 16 17:48:13.018900 OSPF sent Hello 172.14.10.1 – 224.0.0.5 (ge-0/0/1.0 IFL 69 area 0.0.0.1) Mar 16 17:48:13.018968 Version 2, length 44, ID 192.168.2.1, area 0.0.0.1 Mar 16 17:48:13.019032 mask 255.255.255.0, hello_ivl 10, opts 0x2, prio 128 Mar 16 17:48:13.019118 dead ivl 40, DR 172.14.10.1, BDR 0.0.0.0 Mar 16 17:48:13.028426 OSPF DRis 192.168.2.1, BDR is 0.0.0.0 Mar 16 17:48:13.432025 OSPF packet ignoreD. area mismatch (0.0.0.0) from 172.14.10.2 on intf ge-0/011.0 area 0 0 0 1 Mar 16 17:48:13.432135 OSPF rcvd Hello 172.14.10.2 – 224.0.0.5 (ge-0/0/1.0 IFL 69 area 0.0.0.1) Mar 16 17:48:13.432189 Version 2, length 44, ID 192.168.5.1, area 0.0.0.0 Mar 16 17:48:13.432274 checksum Ox8065, authtype 0 Mar 16 17:48:13.432346 mask 255.255.255.0, hello_ivl 10, opts 0x2, prio 128 Mar 16 17:48:13.432398 dead_ivl 40, DR 172.14.10.2, BDR 0.0.0.0 commit complete Looking at the trace options output in the exhibit, why are the OSPF routers stuck in ‘nit state?

There is an MTU mismatch.

There is a network mask mismatch.

The routers are in different areas.

No BDR has been elected.

QUESTION 71
You are configuring an OSPF network. You want to break it up into three areas. Area 0 contains two routers. A router connects to each router in Area 0 with a single link.
Which two statements are true? (Choose two.)

The non-zero areas can both have the same area ID.

The non-zero areas must have unique area IDs.

The routes from the non-zero areas will be summarized by default.

The routes from the non-zero areas will not be summarized by default.

QUESTION 72
You are deploying IP phones in your enterprise networks. When plugged in, the IP phones must automatically be provided with their geographic location details by the EX Series switches. In this scenario, which protocol should be used to enable this behavior?

CDP

LLDP-MED

LLDP

MP-BGP

QUESTION 73
Which two statements are correct about multicast routing tables? (Choose two.)

inet. 2 is used when the multicast forwarding topology differs from unicast forwarding

MBGP and IS-IS place routes in met. l directly.

inet. 0 is used for RPF checks.

IS-IS and OSPFv3 place routes in met. 2 directly.

QUESTION 74

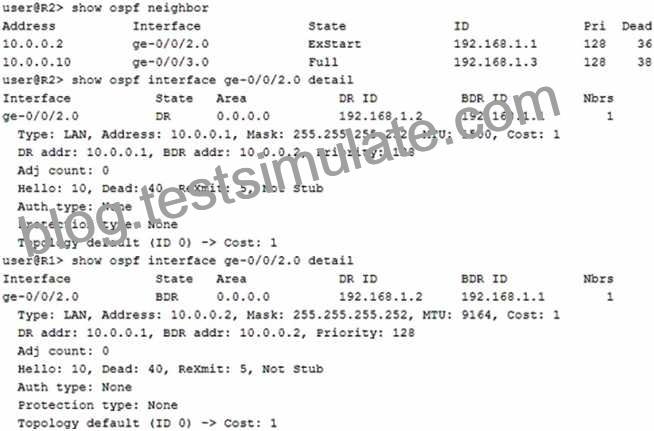

Exhibit:

You are running OSPF as your IGP. The interfaces connecting two routers are in the ExStart state. You notice that something is incorrect with the configuration. Referring to the exhibit, which statement is correct?

The subnet mask is incorrect.

The MTU setting are incorrect.

The interface type is incorrect.

The IP addresses are incorrect.

QUESTION 75
When implementing BGP routing policy, which Junos policy-statement term action can be used to reject a route?

accept

next policy

reject

next term
